Premium Modern Doors

OG DOOR NEW FRONT
Certifications
OG DOOR Details SD 0013 Details

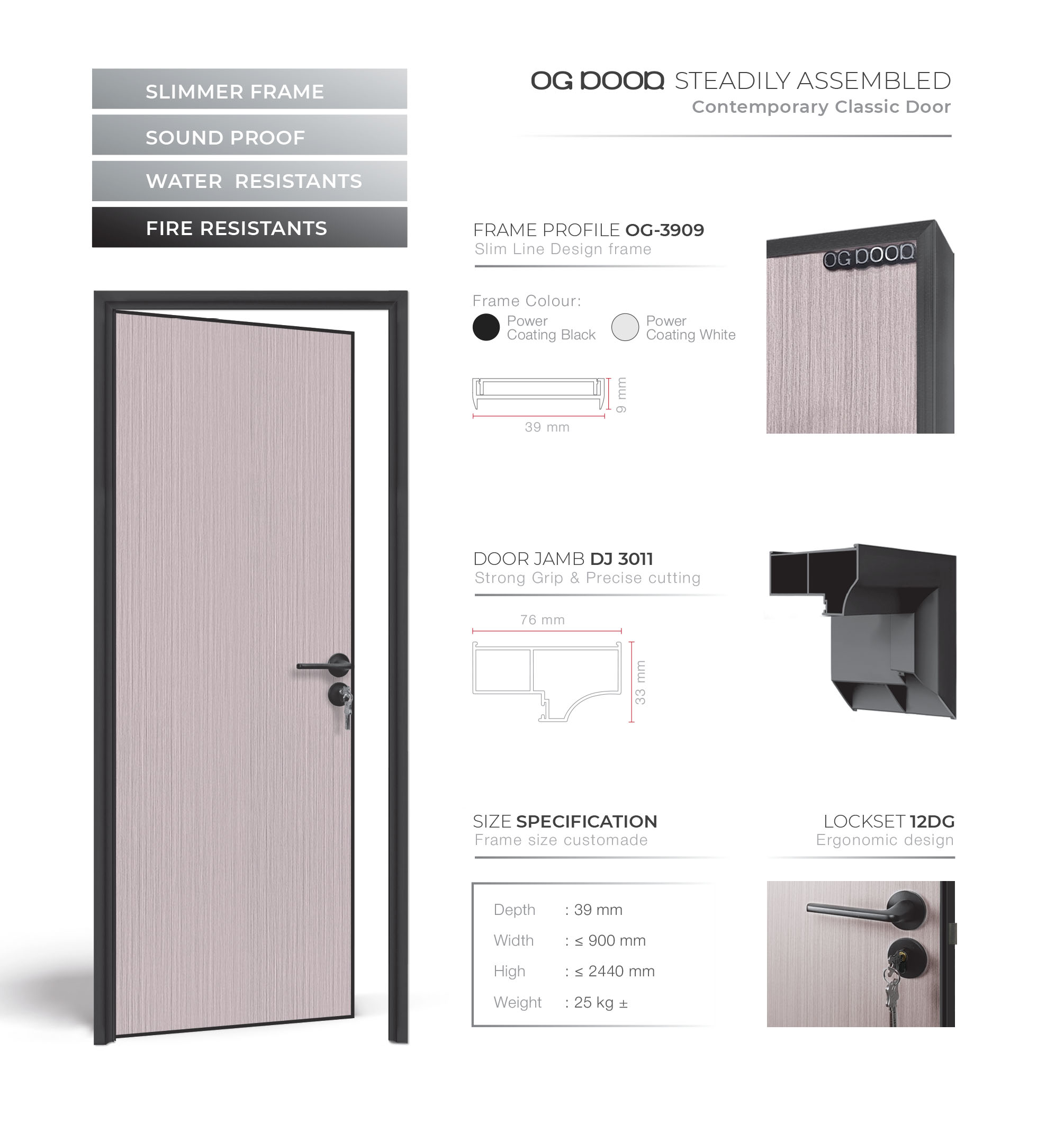

The OG DOOR contemporary classic door is designed for durability, precision, and modern aesthetics. Engineered with a slimline frame (OG-3909) and a strong grip door jamb (DJ 3011), it offers superior strength and stability. This door is built to meet high-performance standards, including soundproofing, water resistance, and fire resistance, making it suitable for both residential and commercial spaces.

Key Features:

Frame Color Options: Available in Power Coating Black and Power Coating White for versatile styling.

Door Jamb (DJ 3011): Precision-cut ensuring a strong grip and secure installation.

Lockset (12DG): Ergonomic handle design for enhanced security and smooth operation.

Size Specifications:

Depth: 39mm

Width: Up to 900mm

Height: Up to 2440mm

Weight: Approx. 25kg ±

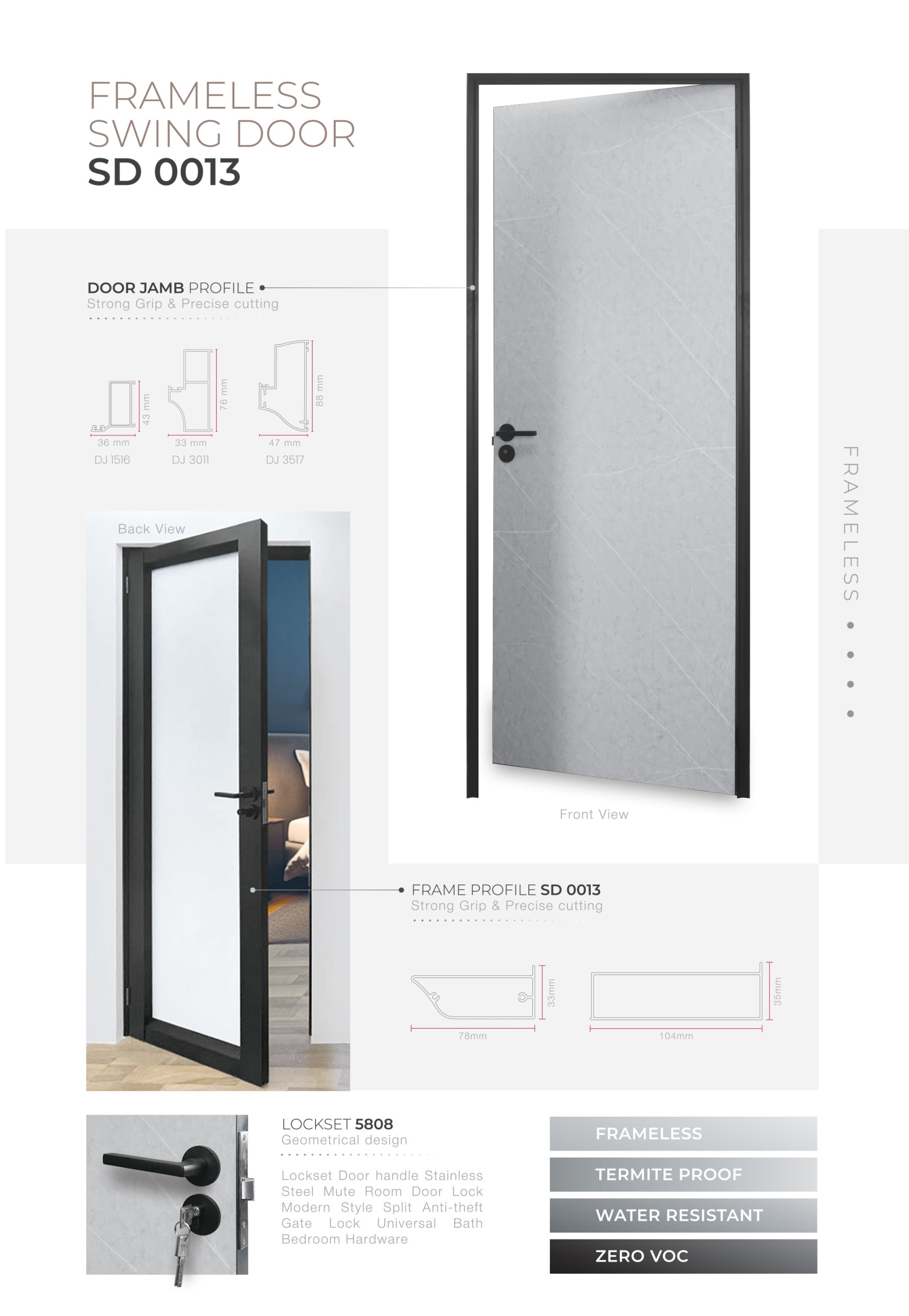

The SD 0013 Frameless Swing Door offers a sleek, modern design with strong grip and precise cutting for durability. Its frameless profile enhances contemporary interiors, making it ideal for both residential and commercial spaces.

Key Features:

Frame Profile (SD 0013): Precision-engineered for strength and smooth operation.

Door Jamb Options: Available in DJ 1516 (36mm), DJ 3011 (33mm), and DJ 3517 (47mm) for flexible installations.

Lockset (5808): Stainless steel, geometric design with anti-theft and mute functionality.

Size Specifications:

Frame Depth: 35mm

Width: 78mm – 104mm

Performance:

✔️ Frameless | Termite Proof | Water Resistant | Zero VOC

Why OG DOOR ?

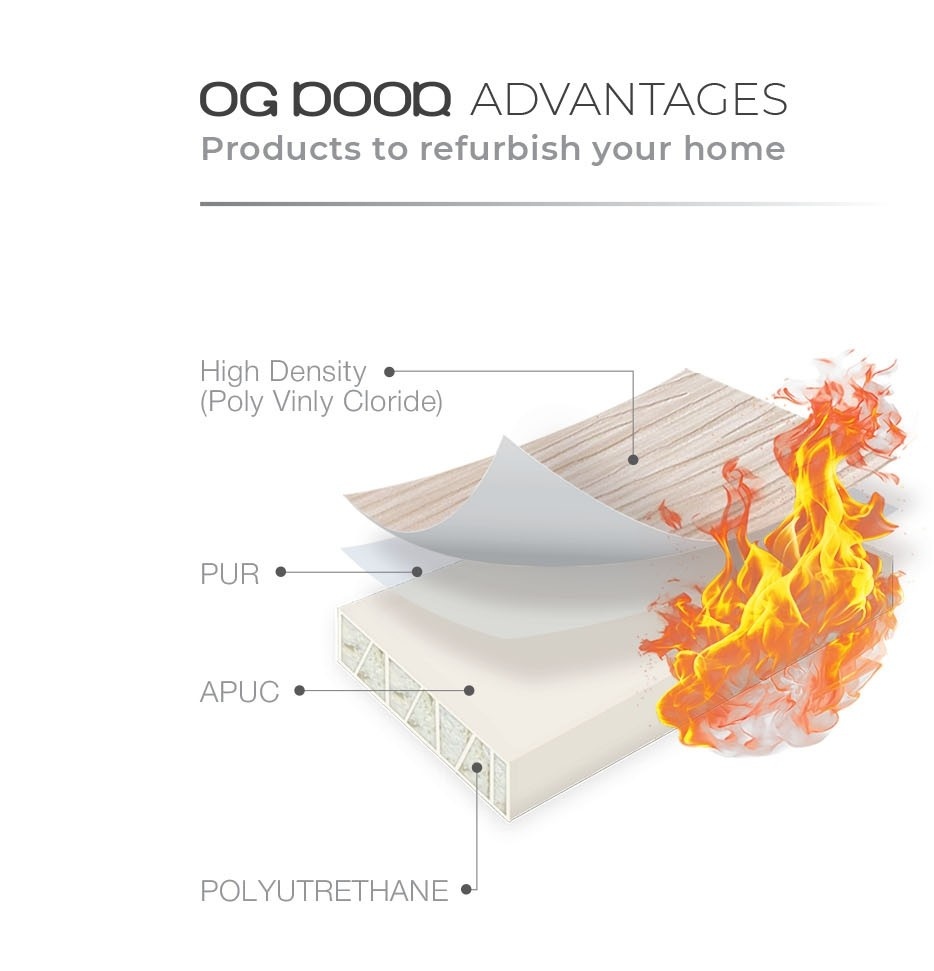

OG DOOR ADVANTAGES

Fire rated doors are fabricated using our quality fire rated materials and are sent for fire resistance testing which complies to the prevailing fire code by UPVC

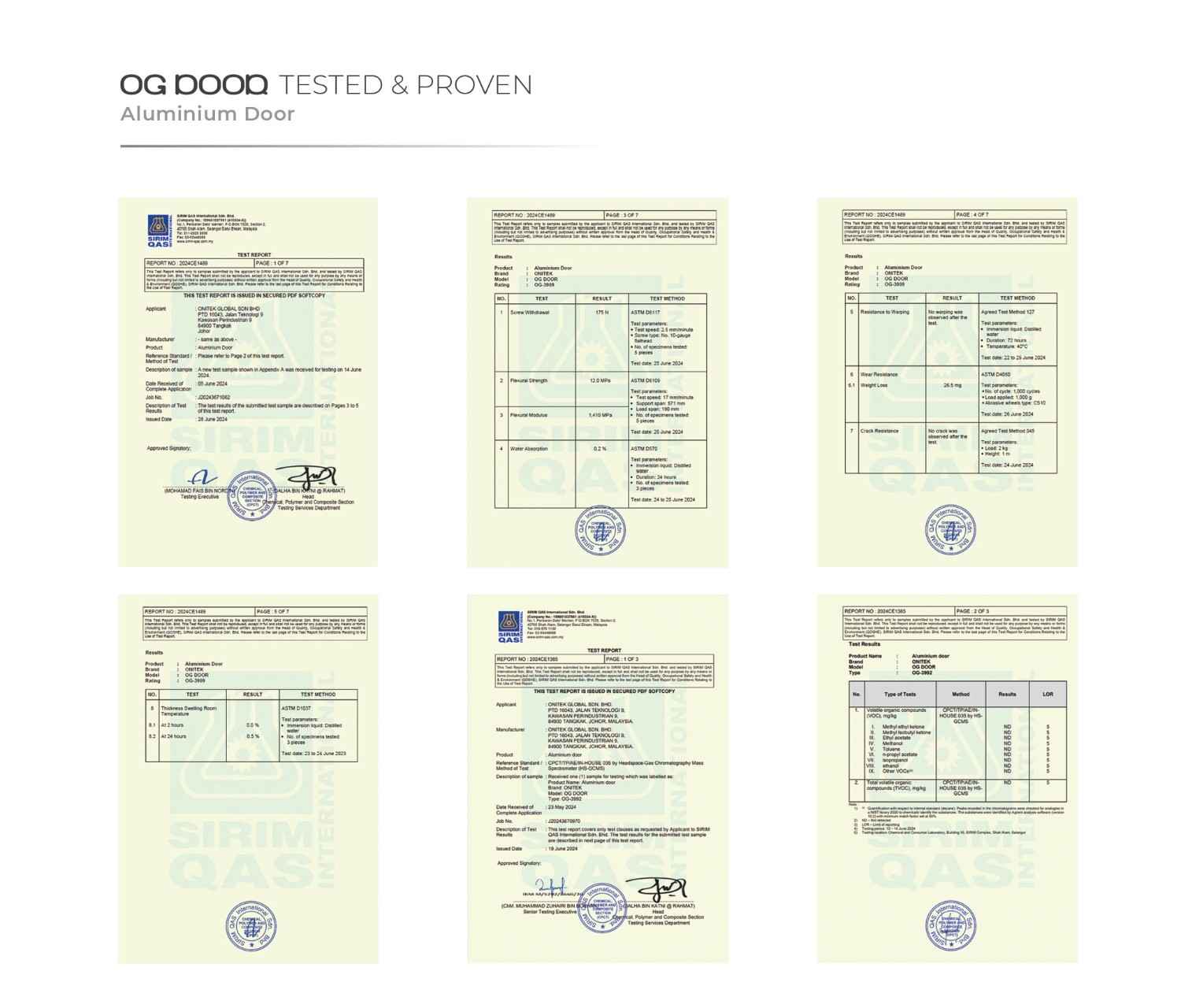

OG DOOR ADVANTAGES
No Test Result Test Method
1 Screw Withdrawal 175N ASTM D6117
Test speed:
2.5 mm/minute
Screw type:
No. 10-gauge flathead
2

3

Flexural Strength

Flexural Modulus

12.0 MPa

1.410 MPa

ASTM D6109
Test speed:
17 mm/minute
Support span: 571 mm
Load span: 190 mm
4 Water Absorption 0.2% ASTM D570
Immersion liquid:
Distilled water
Duration: 24 hours
5 Resistance to Warping No Warping Agreed Test
Method 127
Immersion liquid:
Distilled water
Duration: 72 hours
Temperature: 40°C
6

6.1

Wear Resistance

Weight Loss

26.5 mg ASTM D4060
Cycle: 1.000 cycles
Load applied: 1.000 g
Abrasive wheels type:
CS10
7 Crack Resistance No crack Agreed Test
Method 045
Load: 2 kg
Height: 1 m
8

8.1

8.2

Thickness Swelling Room Temperature

At 2 hours

At 24 hours

0.0%

0.5 %

ASTM D1037
Immersion Liquid:
Distilled water
